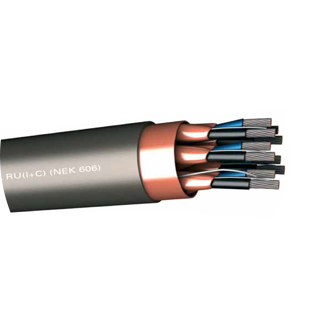

CONDUCTOR : Electrolytic, tinned and stranded copper wire. IEC 60228 Class 2 (Class 5 optional)
ISOLATION : Halogen-free EPR or halogen-free HEPR
BENDING : Cores are twisted in double/triple arrangement and twisted peres/triads are twisted concentrically
EARTH WIRE : Electrolytic, tinned and twisted copper earthing wire next to each per/triad
INDIVIDUAL SCREEN : Electrolytic copper coated Polyester tape screen (coverage: 100%) around each per/triad and earthing wire
EARTHING WIRE : Electrolytic, tinned and twisted copper earth wire under the overall screen
COMMON SCREEN : Electrolytic copper (or aluminum) coated Polyester tape screen (coverage: 100%)
OUTER SHEATH : SHF2 (SHF MUD optional)
CONSTRUCTION : NEK 606, IEC 60092/376
TESTS AND MATERIAL : IEC 60092 /350-351-359
FLAME RETARDANT : IEC 60332/1, IEC 60332/3 Cat A
HALOGEN CONTENT : IEC 60754 / 1 – 2
SMOKE DENSITY : IEC 61034 / 1-2 (DIN EN 50268/1-2)
WORKING TEMPERATURE : -15°C / +90°C, On request -40°C / +90°C (Optional)
MIN. BENDING RADIUS (FIXED) : (cable diameter) 10x
RATED VOLTAGE : 250 V
TEST VOLTAGE : 1.5 kV
| Nominal Kesit (mm2) | Kablo Dış Çapı (mm) | Yaklaşık Kablo Ağırlığı (kg / km) | Bakır Ağırlığı (kg / km) |
|---|---|---|---|
| 1x2x0.75 | 7.3 | 160 | 24 |
| 2x2x0.75 | 11.5 | 300 | 44 |
| 4x2x0.75 | 13.4 | 420 | 82 |
| 7x2x0.75 | 16.2 | 580 | 140 |
| 8x2x0.75 | 20 | 710 | 159 |
| 9x2x0.75 | 20 | 800 | 178 |
| 10x2x0.75 | 20 | 870 | 197 |
| 12x2x0.75 | 21.7 | 900 | 236 |
| 14x2x0.75 | 22.9 | 1,200 | 274 |
| 16x2x0.75 | 24.3 | 1,100 | 312 |
| 19x2x0.75 | 25.7 | 1,610 | 370 |
| 24x2x0.75 | 29 | 1,590 | 466 |
| 1x3x0.75 | 7.7 | 180 | 32 |
| 2x3x0.75 | 12.7 | 360 | 58 |
| 4x3x0.75 | 15 | 500 | 111 |
| 7x3x0.75 | 18.1 | 760 | 190 |
| 8x3x0.75 | 22.4 | 870 | 216 |
| 9x3x0.75 | 22.4 | 1,200 | 243 |
| 10x3x0.75 | 22.4 | 1,310 | 269 |
| 12x3x0.75 | 24.4 | 1,110 | 322 |
| 14x3x0.75 | 25.7 | 1,790 | 375 |
| 16x3x0.75 | 27.3 | 1,410 | 428 |
| 19x3x0.75 | 28.9 | 2,420 | 507 |
| 24x3x0.75 | 32.7 | 2,090 | 639 |
| 1x2x1.5 | 8.7 | 210 | 39 |
| 2x2x1.5 | 14 | 400 | 72 |
| 4x2x1.5 | 16.5 | 580 | 140 |
| 7x2x1.5 | 19.9 | 830 | 240 |
| 8x2x1.5 | 24.7 | 1,110 | 274 |
| 9x2x1.5 | 24.7 | 1,250 | 308 |
| 10x2x1.5 | 24.7 | 1,130 | 341 |
| 12x2x1.5 | 26.9 | 1,200 | 408 |
| 14x2x1.5 | 28.4 | 1,400 | 476 |
| 16x2x1.5 | 30.2 | 1,660 | 543 |
| 19x2x1.5 | 31.9 | 1,970 | 644 |
| 24x2x1.5 | 36.1 | 2,400 | 812 |
| 1x3x1.5 | 9.2 | 240 | 53 |
| 2x3x1.5 | 15.6 | 480 | 101 |
| 4x3x1.5 | 18.5 | 710 | 197 |
| 7x3x1.5 | 22.4 | 1,210 | 341 |
| 8x3x1.5 | 27.8 | 1,450 | 389 |
| 9x3x1.5 | 27.8 | 1,540 | 437 |
| 10x3x1.5 | 27.8 | 1,650 | 485 |
| 12x3x1.5 | 30.3 | 1,800 | 581 |
| 14x3x1.5 | 32 | 2,100 | 677 |
| 16x3x1.5 | 34 | 2,400 | 773 |
| 19x3x1.5 | 36 | 2,850 | 917 |
| 24x3x1.5 | 40.8 | 3,600 | 1157 |
| 1x2x2.5 | 9.7 | 260 | 58 |
| 2x2x2.5 | 15.7 | 520 | 111 |
| 4x2x2.5 | 18.6 | 1,000 | 216 |
| 7x2x2.5 | 22.5 | 1,810 | 375 |
| 8x2x2.5 | 28 | 1,890 | 428 |
| 9x2x2.5 | 28 | 2,010 | 480 |
| 10x2x2.5 | 28 | 2,280 | 533 |
| 1x3x2.5 | 10.3 | 390 | 82 |
| 2x3x2.5 | 17.6 | 730 | 159 |
| 4x3x2.5 | 20.8 | 1,510 | 312 |
| 7x3x2.5 | 25.4 | 2,400 | 543 |
| 8x3x2.5 | 31.6 | 2,740 | 620 |
| 9x3x2.5 | 31.6 | 3,060 | 696 |
| 10x3x2.5 | 31.6 | 3,410 | 773 |
