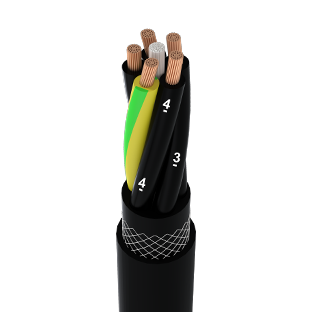

ÜNFLEX SPREADER REEL PUR – HF

CONDUCTOR : Electrolytic, plain annealed copper wire Class 5 according to IEC 60228
INSULATION : All cores are insulated with halogen free compound, based on polyester. In need cores are wrapped by PTFE to increase the abrasion resistivity.
CORE IDENTIFICATION : Up to 5 cores: colored in accordance with DIN VDE 0293-308; From 6 cores: white cores with black numbers
LAY UP : Central Aramid strength member, cores laid up in concentric layers with shorth length of lay
INNER SHEATH : Halogen Free, flame retardant Polyurethane compound
REINFORCEMENT : Anti-twisting element – Aramid yarns braiding
OUTHER SHEATH : Halogen Free, flame retardant Polyurethane compound
COLOR : Yellow, black or orange

CONSTRUCTION : Generally to IEC 60502 & VDE 0250
ELECTRICAL TESTS : DIN VDE 0472-501, 502, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
GENERAL REQUIREMENTS : DIN VDE 0250-1 and IEC 60502
FLAME RETARDANT : IEC 60332-1
OİL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1

RATED VOLTAGE : 0,6 / 1 kV
MAX. OPERATING AC VOLTAGE : 0,7 / 1.2 kV
MAX. OPERATING DC VOLTAGE : 0,9 / 1.8 kV
AC TEST VOLTAGE : 3,5 kV
MİN BENDING RADIUS : 6 x D (fixed application) 8 x D (mobile applications)
CURRENT CARRYING CAPACITIES : According to DIN VDE 0298-4
WORKİNG TEMPERATURE
FIXED : – 50 °C up to + 90 °C
MOBILE : – 40 °C up to + 90 °C
CONDUCTOR OPERATING TEMPATURE : + 90 °C
CONDUCTOR SHORT CIRCUIT :
TEMPATURE : + 250 °C
MAX. TENSILE LOAD ON CONDUCTOR : 30 N / mmÇ
MAX. TORSION : ±25º/m
TRAVEL SPEED
IN FESTOON SYSTEMS : up to 240 m/min
IN REELING APPLICATIONS : up to 240 m / min. horizantal up to 180 N /mm vertical
